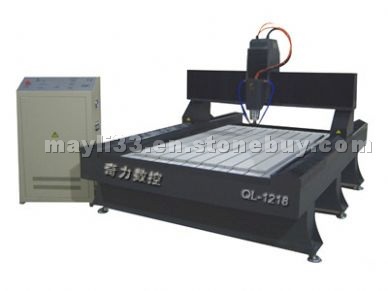

Marble Carving Machine QL-1218

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1460835

• Place of Origin:

  China
• Marble carving machine QL-1218
  Description:
  1>imported linear square rails, dual four slider, loading capacity, smooth operation and high precision, long life, under the knife precision.
  2> The entire machine seamless welded steel structure, rigid Haobu deformation, table back lining plate, the rigid strength, and machine loading capacity can be
  3>constant power spindle motor, cutting intensity, high efficiency.
  4>software compatible with Typ3/Artcam/Castmate/Wentai, and other CAD/CAM design software
  5>two-way tool cooling system, effectively raising tool life

  Scope:
  Granite, marble, Qingshi, sandstone, and other stone carvings
  Granite and other hard stone carving to be at level 5 mm
  Marble, Qingshi, can be a sculpture to 5 mm

  Capacity:
  X.Y working area1200*1800mm
  Z working area>120mm
  Table1440*3000mm
  The largest operating speed8m/min
  The largest carving speed6m/min
  Resolution0.01mm
  Repeat positioning accuracy0.05mm
  Feeding the greatest height120mm
  CommandG code*.u00*.mmg*.plt
  Surroundings for softwarewindows98/2000/xp
  Power(exclude spindle)1500w
  Work voltageAC220V/50Hz
  Spindle power2.2KW
  Spindle rotating speed24000rpm/min
  Work ModeSteper
