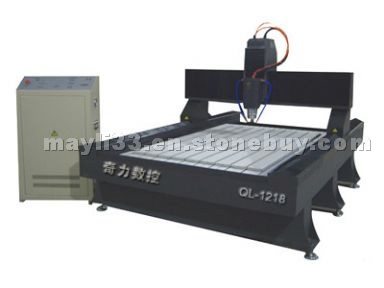

Marble Engraving Machine QL-1218

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1428731

• Place of Origin:

  China
• Marble Engraving Machine QL-1218
  Details:
  1>imported linear square rails, dual four slider, loading capacity, smooth operation and high knife precision.
  2> The entire machine seamless welded steel structure, rigid Haobu deformation, table back lining plate,rigid strength,machine loading capacity can be constant power spindle motor, cutting intensity, high efficiency.
  3software compatible with Typ3/Artcam/Castmate / Wentai, and other CAD/CAM design software
  4two-way tool cooling system, effectively raising tool life

  Appliable Fields:
  1, stone crafts, make relief, scrupture,big statue,pottery and porcelain decration,etc.
  2.advertising industry: large advertising signs, acrylic brands,tableets,calligraphy,3D characters,garden or wall decoration,logo, acrylic cutting, forming system module, billboard field,
  3 others: large-scale relief sculpture, video carving,craft and gift, widely used in process industries gifts.

  Capacity:
  1. X.Y working area1200*1800mm
  2. Z working area>120mm
  3. Table1440*3000mm
  4. The largest operating speed8m/min
  5. The largest carving speed6m/min
  6. Resolution0.01mm
  7. Repeat positioning accuracy0.05mm
  8. Feeding the greatest height120mm
  9. CommandG code*.u00*.mmg*.plt
  10.Surroundings for softwarewindows98/2000/xp
  11.Power(exclude spindle)1500w
  13.Work voltageAC220V/50Hz
  14.Spindle power2.2KW
  15.Spindle rotating speed24000rpm/min
  16.Work ModeSteper
  Standard Configure:
  1)Steel construction lathe bed,
  2)Table-board mould,
  3)XY Z , X Y rack driven,
  4)Circular guides in 3 axis,
  5)Double-motor driving in Y axis,
  6)Ncstudio system,
  7)Spindle and Transducer2.2KW,
  8)LeadShine Driver,
  9) Speed: 10-12m/min
  (10)Software: ARTCAM,TYPE3
  (11) a set of cutters,20 pieces
  (12)6 pieces of fixing clamps
